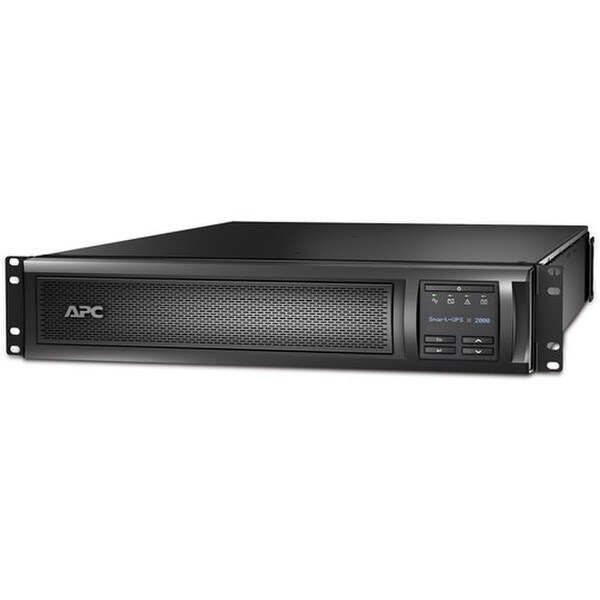

APC Smart-UPS X 2000VA Rack/Tower LCD
APC Smart-UPS X 2000VA Rack/Tower LCD 100-127V with Network Card
Intelligent and efficient network power protection from entry level to scaleable runtime
Features
- Instant backup battery power during an outage
- Protects electronic equipment from harmful power conditions
- Three switchable outlet groups for individual load management
- Pure sine wave output while on battery
- Ability to add external battery packs for extended runtime
- Smart battery management for long battery life
Protect your server, switches, routers, and networking devices with the APC Smart-UPS SMX2000LVNC. This UPS provides backup battery power in the event of a power outage, monitoring and safeguarding your equipment from harmful power conditions, spikes and surges. An automatic green mode ensures you are operating at the highest level of efficiency while smart battery management maximizes performance.
Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. This Smart-UPS has a 1,800-watt power capacity, 10 outlets, three switchable outlets groups, and the capability to add external battery packs to extend the runtime needed for network applications.
APC Smart-UPS SMX2000LVNC, CD with PowerChute Business Edition software, documentation CD, rack-mount support rails and hardware, removable support feet, Smart-UPS signaling RS-232 cable, USB cable, and network management card.
Output power capacity: 11.8kWatts / 1.92kVA
Max Configurable Power (Watts): 1.8kWatts / 1.92kVA
Nominal Output Voltage: 120V
Output Voltage Distortion: Less than 5%
Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
Topology: Line Interactive
Waveform Type: Sine wave
Output Connections: (3) NEMA 5-20R (Battery Backup) (1) NEMA L5-20R (Battery Backup) (6) NEMA 5-15R (Battery Backup)
Nominal Input Voltage: 120V
Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections: NEMA 5-20P
Input Voltage Range for Main Operations: 70 - 153V
Input Voltage Adjustable Range for Mains Operation: 75 - 154VA
Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time: 3hour(s)
Expected Battery Life (years): 3-5
Interface Port(s): RJ-45 Serial, Smart-Slot, USB
Control Panel: LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Energy Rating: 540Joules
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Regulatory Approvals: BSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TUV, UL 1778, VCCI Class A
RoHS: Compliant
REACH: REACH: Contains No SVHCs
